Nickel Alloy 52 Tube Feni52 Low Expansion Alloy Soft Annealed for Glass to Metal Sealing

Name: Nickel Alloy 52 Tube Feni52 Low Expansion Alloy Soft Annealed for Glass to Metal Sealing
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Alloy 52 / TK41152
Price: 499.05 USD
Availability: InStock

Detalhes do produto

Place of Origin: Shanghai, China

Marca: TANKII

Certificação: ISO9001

Model Number: Alloy 52 / TK41152

Termos do pagamento & do transporte

Minimum Order Quantity: 1KG

Preço: Negociável

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Nickel Alloy 52 tube, Low Expansion Alloy pipe, Precision Alloy TK41152 Feni52


material:	Nickel Iron Alloy tube	Condition:	Soft Annealed
OD:	0.50-8.00mm	WT:	0.015 MM MIN.
ID:	0.10MM Min.	Length:	0.30MM Min.
sample:	accpted small order	Type:	precision Alloy tube

material:	Nickel Iron Alloy tube
Condition:	Soft Annealed
OD:	0.50-8.00mm
WT:	0.015 MM MIN.
ID:	0.10MM Min.
Length:	0.30MM Min.
sample:	accpted small order
Type:	precision Alloy tube

Descrição

Nickel Alloy 52 Tube Feni52 Low Expansion Alloy Soft Annealed for Glass to Metal Sealing

Precison Alloy TK41152 Feni52 ASTM F30 / Nickel Alloy 52 tube N52 / Niloy52 Low Expansion Alloy pipe

TK41152 / Alloy 52 Contains 52% nickel and 48% iron and is widely used in the telecommunications industry.It also finds a application in a wide variety of electronic applications,especially for glass seals.

TK41152 / Alloy 52 is one of the glass to metal sealing alloys designed for use with a variety of soft glasses. Known for a coefficient of thermal expansion that is almost constant up to 1050F (565 C).

Size Range:

*Capillary ---OD 8.0mm~0.5mm,ID 0.1mm min,length:0.3mm Min,Condition: cold drawn, bright, bright annealed.

*Pipe ---OD 120mm~8.0mm,ID 8.0mm~129mm,length:≤4000mm,Condition: cold drawn, bright, bright annealed.

Chemistry:

	Cr	Al	C	Fe	Mn	Si	P	S	Ni	Mg
Min	--	--	--	--	--	--	--	--	50.5	--
Max	0.25	0.10	0.05	Bal.	0.60	0.30	0.025	0.025	--	0.5

Average Linear Expansion Coefficient:

Grade	α1/10-6ºC-1
Grade	20~100ºC	20~200ºC	20~300ºC	20~350ºC	20~400ºC	20~450ºC	20~500ºC	20~600ºC
TK41152	10.3	10.4	10.2	10.3	10.3	10.3	10.3	10.8

Properties:

Condition	Approx. tensile strength		Approx. operating temperature
Condition	N/mm²	ksi	°C	°F
Annealed	450 - 550	65 - 80	up to +450	up to +840
Hard Drawn	700 - 900	102 - 131	up to +450	up to +840

Forming:

The alloy has good ductility and can be formed by standard means.

Welding:

Welding by conventional methods is appropriate for this alloy.

Heat Treatment:

TK41152 should be annealed at 1500F followed by air cooling. Intermediate strain relieving can be performed at 1000F.

Forging:

Forging should be done at a temperature of 2150 F.

Cold Working:

The alloy is readily cold worked. Deep drawing grade should be specified for that forming operation and annealed grade for general forming.

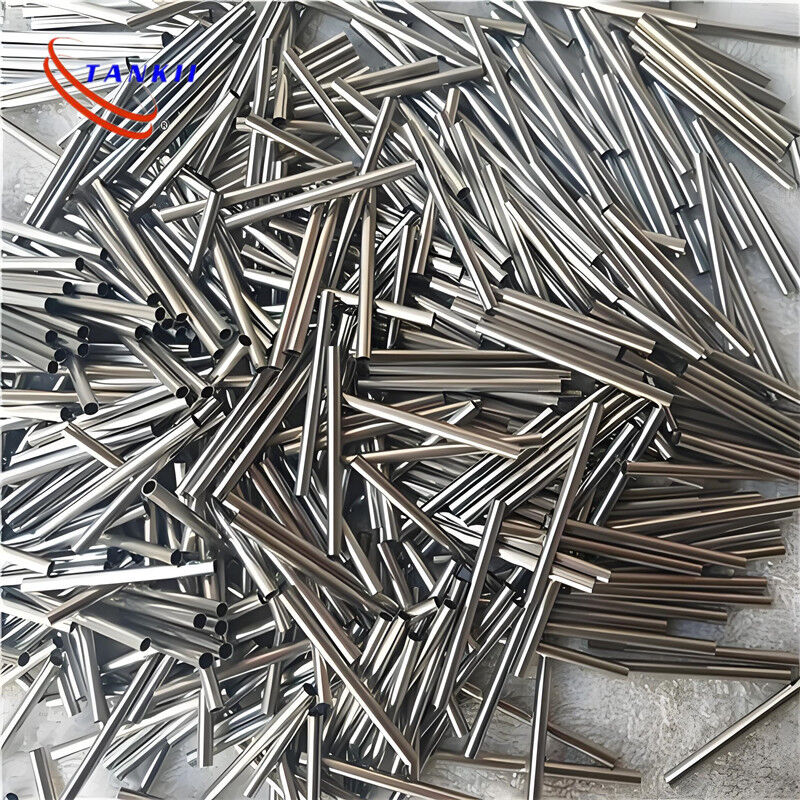

Nickel Alloy 52 Tube Feni52 Low Expansion Alloy Soft Annealed for Glass to Metal Sealing 0
