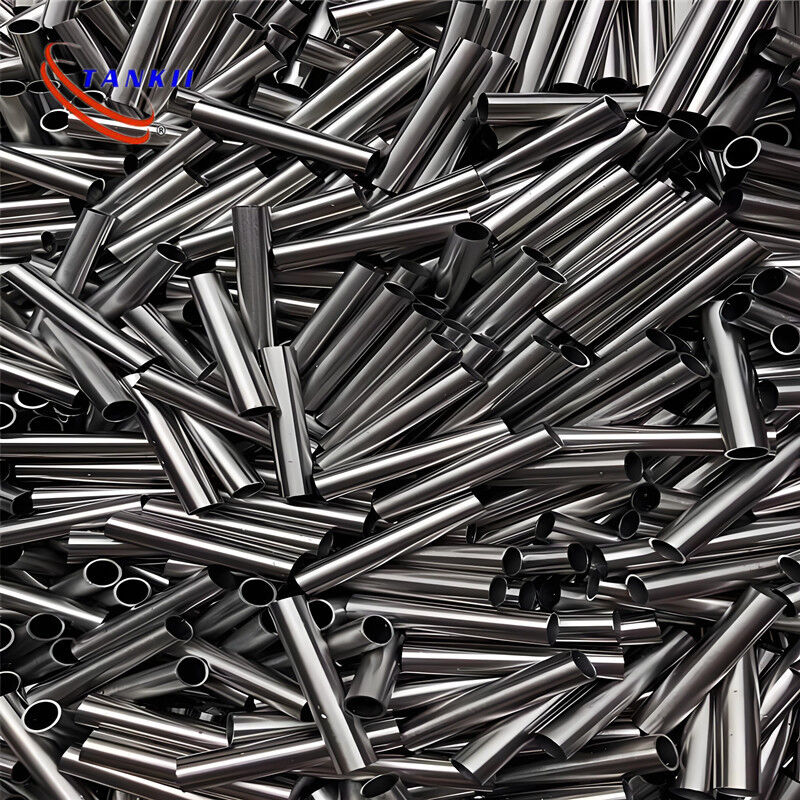

Iron Nickel Alloy Tube Alloy 52 Feni52 for Glass Sealing and Hermetic Seals with 0.5mm-8.0mm OD

Name: Iron Nickel Alloy Tube Alloy 52 Feni52 for Glass Sealing and Hermetic Seals with 0.5mm-8.0mm OD
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: FENI52
Price: 499.05 USD
Availability: InStock

Detalhes do produto

Place of Origin: Shanghai, China

Marca: TANKII

Certificação: ISO9001

Model Number: FENI52

Termos do pagamento & do transporte

Minimum Order Quantity: 1KG

Preço: Negociável

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Precision Alloy 52 sealing tube, Feni52 glass sealing pipe, Hermetic seal alloy 52 tube


Material:	iron nickel alloy tube	OD:	0.5mm-8.0mm
WT:	0.015mm Min.	ID:	0.1mm Min.
surface:	Bright surface	length:	0.3mm Min.
samples:	accepted small order	standard:	GB/ASTM/JIS/BIS/DIN

Material:	iron nickel alloy tube
OD:	0.5mm-8.0mm
WT:	0.015mm Min.
ID:	0.1mm Min.
surface:	Bright surface
length:	0.3mm Min.
samples:	accepted small order
standard:	GB/ASTM/JIS/BIS/DIN

Descrição

Iron Nickel Alloy Tube Alloy 52 Feni52 for Glass Sealing and Hermetic Seals with 0.5mm-8.0mm OD

TK41152 Feni52 Alloy Tube Alloy 52 OD 8.0-0.5mm -Glass Sealing 52 for Hermetic Seals

Product Description
The iron-nickel fixed expansion alloy is a series of fixed expansion alloys that can be matched with soft glass and ceramics with different expansion coefficients in a given temperature range by adjusting the nickel content. The expansion coefficient and Curie point increase with the increase of nickel content. This combination gold is a widely used sealing structure material in the electric vacuum industry

Chemical Composition

Grade	C%	P%	S%	Mn%	Si%	Cu%	Cr%	Mo%	Ni%	Co%	Fe%
TK41152	Max 0.05	Max 0.020	Max 0.020	Max 0.80	Max 0.30	/	/	/	51.5~52.5	/	Bal.

Specifications

Grade	Common Name	Common Name
TK41152	Vacodil520	NILO 52

Average Linear Expansion Coefficient:

Grade	α1/10-6ºC-1
Grade	20~100ºC	20~200ºC	20~300ºC	20~350ºC	20~400ºC	20~450ºC	20~500ºC	20~600ºC
TK41152	10.3	10.4	10.2	10.3	10.3	10.3	10.3	10.8

Grain size of TK41152
The grain size of the alloy deep-drawing belt should not be less than level 7, and the grain size less than level 7 should not exceed 10% of the area. When the average grain size of the strip with a thickness of less than 0.13mm is estimated, the number of grains along the thickness of the strip should be no less than 8.

Welding performance of TK41152
The combined gold has good welding performance and can be brazed and spot welded. The combination of gold and soft glass should be pre-oxidized before sealing.
