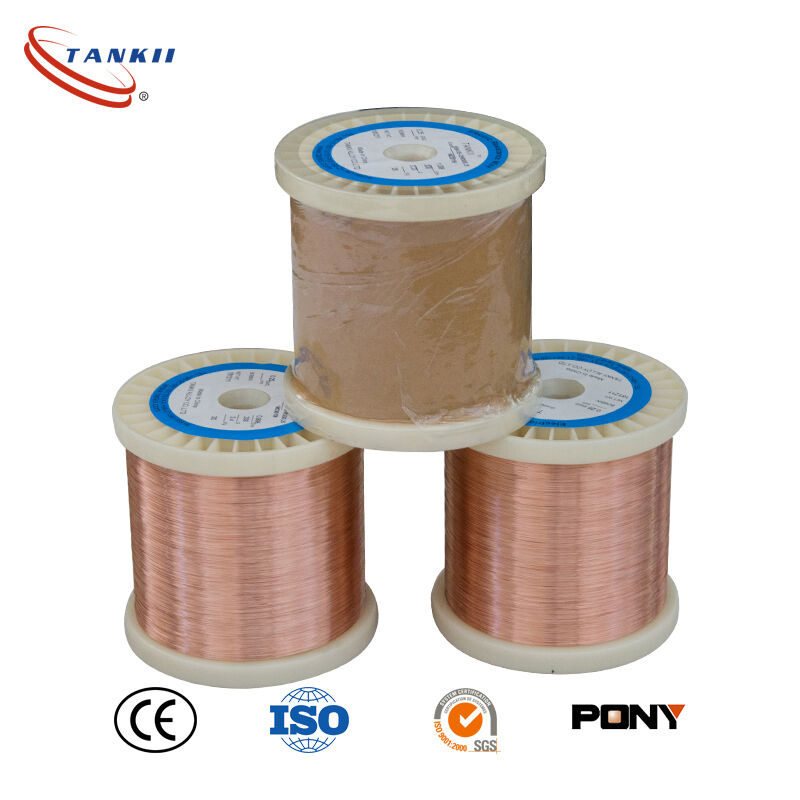

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

Detalhes do produto

Lugar de origem: China

Marca: Tankii

Certificação: ISO 9001

Número do modelo: manganina 47

Termos do pagamento & do transporte

Quantidade de ordem mínima: 30KG

Preço: negotiate

Detalhes da embalagem: Caixa

Tempo de entrega: 2-3 semanas

Habilidade da fonte: 5000 toneladas por ano

Obtenha o melhor preço
Contacte agora
Especificações
Destacar:
Material:
manganina 47
Modelo:
6J12
Forma:
fio/tira/folha
Densidade:
8.4g/cm3
Resistência:
47μΩ/cm
Alongamento:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs Cu μV/℃:
≤1
Material:
manganina 47
Modelo:
6J12
Forma:
fio/tira/folha
Densidade:
8.4g/cm3
Resistência:
47μΩ/cm
Alongamento:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs Cu μV/℃:
≤1
Descrição
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
