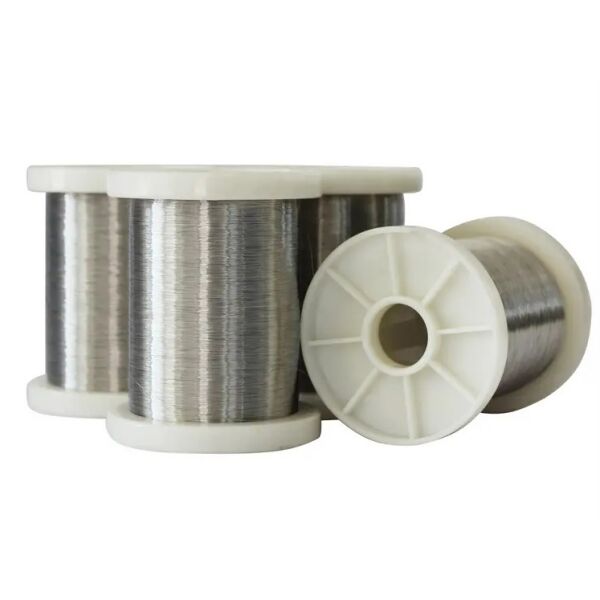

High Ductility Pure Nickel Wire with Excellent Corrosion Resistance and Good Mechanical Strength for Resistor Elements

Name: High Ductility Pure Nickel Wire with Excellent Corrosion Resistance and Good Mechanical Strength for Resistor Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Níquel200/Níquel201
Price: 32.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: Tankii

Certificação: ISO9001

Número do modelo: Níquel200/Níquel201

Termos do pagamento & do transporte

Quantidade de ordem mínima: 5kg

Preço: 30-35USD/Kg

Detalhes da embalagem: Caso

Tempo de entrega: 5-15 dias

Termos de pagamento: D/A,T/T,União Ocidental

Habilidade da fonte: 5000 kg/mês

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                              Pure Nickel Wire N200 N201, Nickel 212 resistor element wire, Copper Nickel Alloy Wire


Amostra:	Livre	Largura:	200mm
Superfície:	Brilhante	Doença:	Macio 1/4h 1/2h duro

Amostra:	Livre
Largura:	200mm
Superfície:	Brilhante
Doença:	Macio 1/4h 1/2h duro

Descrição

High Ductility Pure Nickel Wire with Excellent Corrosion Resistance and Good Mechanical Strength for Resistor Elements

High Practicality Pure Nickel Wire N200/N201 Nickel 212 Used in Resistor Element

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Nickel foil and nickel strip for battery

Pure nickel grade: Ni200,Ni201, N4,N6

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Forms

Coil - Strip, Foil, Ribbon
Wire - Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet

Chemical composition

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50

High Ductility Pure Nickel Wire with Excellent Corrosion Resistance and Good Mechanical Strength for Resistor Elements 0
