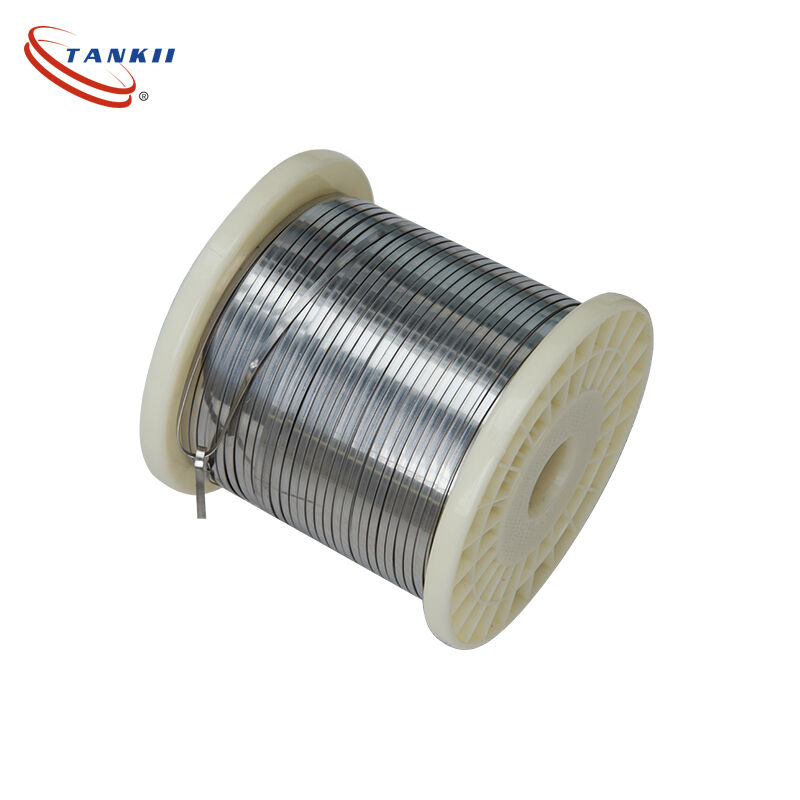

Ni80Cr20 flat wire 0.4*3.0mm for drying equipment heating element assembly
Heat Resistance alloy Nichrome wire NiCr8020/NiCr7030/NiCr3520
The material NiCr8020 with the material number 2.4869 is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.
It is a nickel-chromium heating conductor alloy for operating temperatures of up to 1150 °C and often contains additives of rare earths for a higher resistance to oxidation, especially with frequent switching operations or broad temperature variations.
The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, yet it is low to oxidizing as well as reducing gases containing sulphur.
The resistance to carbonizing is high. Application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters.
1.About Nichrome wire
Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni
Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil
size:Wire: 0.018mm-10mm Ribbon: 0.05*0.2mm-2.0*6.0mm Strip: 0.5*5.0mm-5.0*250mm Bar: 10-100mm
2.Grades and properties
The description of products
1) The chemical composition:
| Brand |
Chemical composition |
Si |
Cr |
Ni |
Al |
Fe |
| C |
P |
S |
Mn |
| Not more than |
| Cr20Ni80 |
0.08 |
0.020 |
0.015 |
0.60 |
0.75-1.60 |
20.0-23.0 |
remain |
≤0.50 |
≤1.0 |
| Cr15Ni60 |
0.08 |
0.020 |
0.015 |
0.60 |
0.75-1.60 |
15.0-18.0 |
55.0-61.0 |
≤0.50 |
remain |
| Cr20Ni35 |
0.08 |
0.020 |
0.015 |
1.00 |
1.00-3.00 |
18.0-21.0 |
34.0-37.0 |
- |
remain |
| Cr20Ni30 |
0.08 |
0.020 |
0.015 |
1.00 |
1.00-2.00 |
18.0-21.0 |
30.0-34.0 |
- |
remain |
2) Size and Tolerances
Diameter |
0.030-0.50 |
>0.050-0.100 |
>0.100-0.300 |
>0.300-0.500 |
>0.50-1.00 |
>1.00-3.00 |
EXECUTIVE
STRANDARD |
| Tolerance |
±0.005 |
±0.007 |
±0.010 |
±0.015 |
±0.02 |
±0.03 |
GB/T1234-1995 |
When the product is at "M" status, should be followed the standard GB/T1234-1995
Resistivity:
| Brand |
Cr20Ni80 |
Cr20Ni60 |
Cr20Ni35 |
Cr20Ni30 |
| Diameter mm |
<0.50 |
0.50-3.0 |
<0.50 |
≥0.50 |
<0.50 |
≥0.50 |
| resistivity(20°C)uΩ·m |
1.09±0.05 |
1.13±0.05 |
1.12±0.05 |
1.15±0.05 |
1.04±0.05 |
1.06±0.05 |
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
