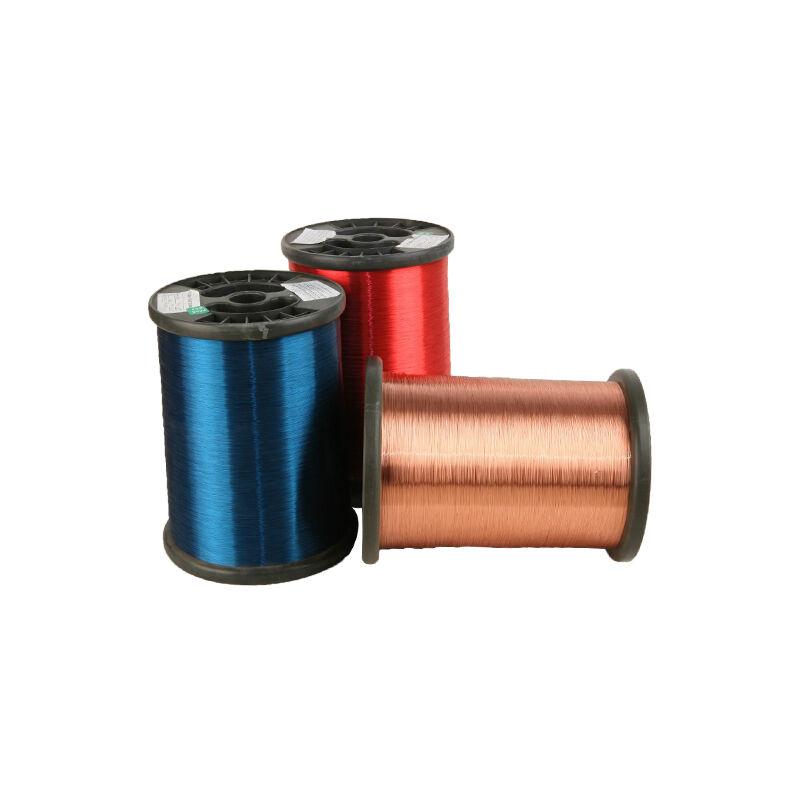

Enameled Manganin Wire /6j12 For Resistor

Enameled Manganin Wire /6j12 for Resistor

Enameled copper wire is a kind of magnet wire with insulation coating, widely used in motors, transformers, inductors, coils, relays and other electrical and electronic components. It features excellent heat resistance, dielectric strength, adhesion, flexibility and chemical resistance.

• • Insulation: Polyurethane (PU/UEW), Polyester (PEW), Polyester-imide (EIW), Polyimide (PIW), Polyamide-imide (PAI)
  • Temperature Class: 130°C, 155°C, 180°C, 200°C, 220°C
  • Features: Good solderability, high scratch resistance, stable performance, suitable for high-speed winding
  • Application: Motors, transformers, ballasts, generators, solenoids, household appliances, automotive electronics

  ---

Manganin is a trademarked name for an alloy of typically 86%copper, 12%manganese, and 2%nickel.
Manganin foil and wire is used in the manufactur of resistor, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity
Chemical Content, %

Mechanical Properties

Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.

The data provided in this document is protected under applicable laws, including but not limited to copyright law and international agreements

Product size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
