High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements

Name: High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: nicr 80/20
Price: 25 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: Tankii

Número do modelo: nicr 80/20

Termos do pagamento & do transporte

Quantidade de ordem mínima: 20kg

Preço: usd+25+kg

Detalhes da embalagem: Caixa de papelão + palete de madeira para exportação

Tempo de entrega: 20 dias

Termos de pagamento: L/C, D/A, D/P, T/T, Western Union

Habilidade da fonte: 100000TONAS/MÊS

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                              nichrome resistance wire, tankii electric heating wire, nicr alloy resistance wire


Descrição

High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements

Basic Info.

Model NO.

Ni80Cr20, Ni60Cr15, Ni35Cr20

shipment

by air, by sea

Transport Package

Spool, Paper Carton, Wooden Case

Specification

RoHS, ISO 9001

Trademark

TANKII

Origin

China

HS Code

75052200

Production Capacity

200 Tons/Month

Packaging & Delivery

Package Size

11.00cm * 11.00cm * 1.00cm

Package Gross Weight

11.000kg

Product Description

Nichrome Electric Resistance Wire and Strip

Nichrome Wire/Strip/Tape/Ribbon/Rod/Bar grade NiCr 80/20, NiCr 60/15, NiCr 35/20, NiCr 30/20

Nichrome Wire/Strip/Tape/Ribbon/Rod/Bar

NCHW1, NCHW2, Resistohm 80, Resistohm 60, Resistohm 40, Ni80Cr20, Ni60Cr15, Ni35Cr20, Nichrome 80/20, Nichrome 60/16

Shape: Flat Wire Thickness 0.02~1mm Width 0.6~5mm

Round Wire 0.025mm~16mm,

Strip,Sheet Coil: Thickness 0.005~3mm Width 1~300mm

We also can enameled the wire or process into spiral shape for you.Or make one oxidized cellar for your wire, strip or heating element.

Producer: Shanghai Tankii Alloy Material Co., Ltd.

Nichrome is a non-magnetic alloy of nickel, chromium, and often iron, usually used as a resistance wire. Patented in 1905, it is the oldest documented form of resistance heating alloy. A common alloy is 80% nickel and 20% chromium, by mass, but there are many others to accommodate various applications. It is silvery-grey in colour, is corrosion-resistant, and has a high melting point of about 1400 °C (2552 °F). Due to its relatively high electrical resistivity and resistance to oxidation at high temperatures, it is widely used in electric heating elements, such as in hair dryers, electric ovens, soldering iron, toasters, and even electronic cigarettes. Typically, Nichrome is wound in coils to a certain electrical resistance, and current is passed through to produce heat.

Chemical Composition and Main Properties of Nichrome
Properties Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni	Balance	Balance	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Balance	Balance	Balance
Max Continuous Service Temperature(oC)		1200	1250	1150	1100	1100
Resisivity 20oC (Ω mm2/m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity(KJ/m@ h@ oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion(α × 10-6/oC)		18	17	17	19	19
Melting Point( Ω )		1400	1380	1390	1390	1390
Elongation(%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic

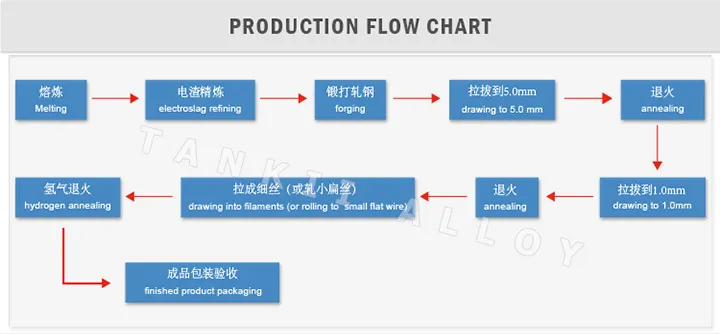

High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements 0

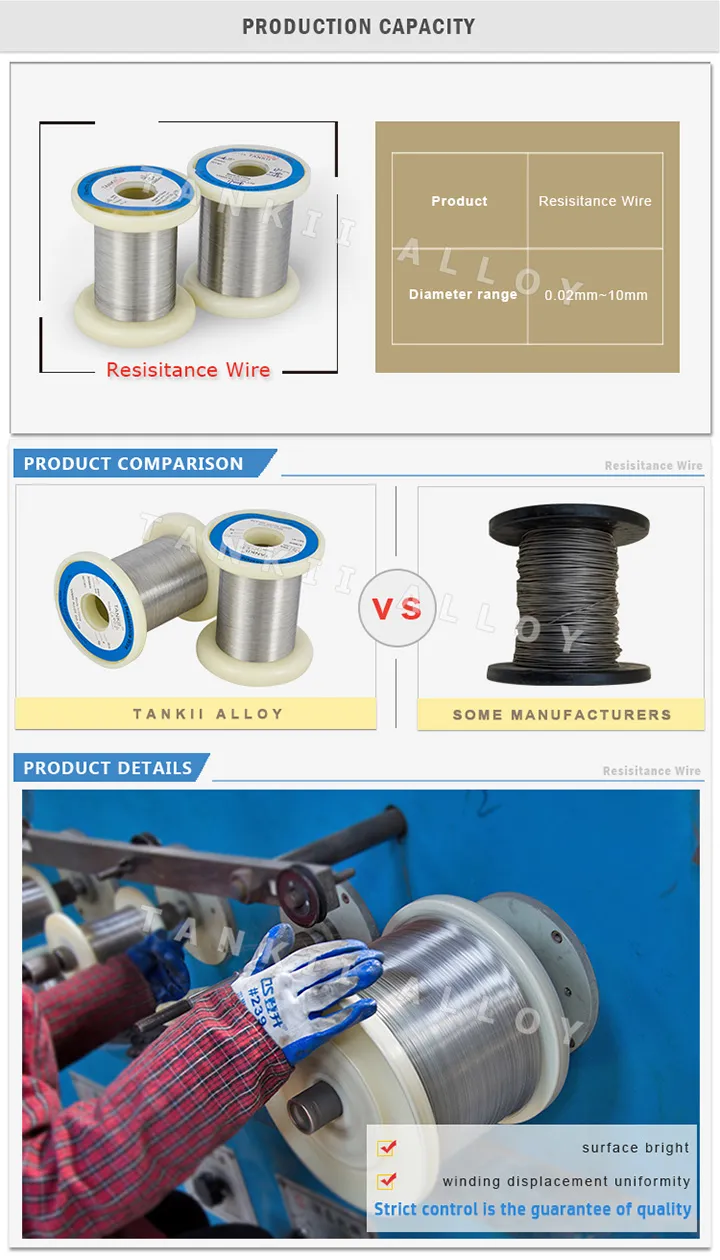

High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements 1

High Melting Point Corrosion Resistant Non-Magnetic Nichrome Electric Resistance Wire for Heating Elements 2
