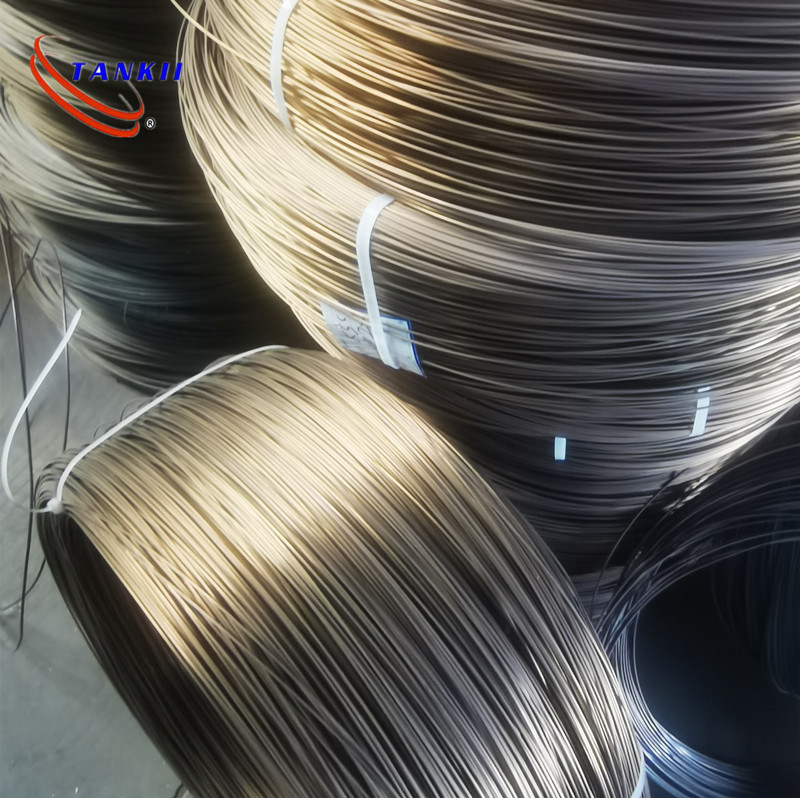

FeCrAl Ferro-Chromium-Aluminum D A1 Tk1 Apm High-Temperature Heating Resistance Wire

Detalhes do produto

Place of Origin: Shanghai China

Marca: TANKII

Certificação: ISO， ROHS

Model Number: APM

Termos do pagamento & do transporte

Minimum Order Quantity: 10 KG

Preço: Negociável

Packaging Details: wooden Case

Delivery Time: 25 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100 Tons/Month

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:

Material:	TK APM	Resistivity:	1.45
Diameter:	0.05-10.0mm	Surface:	Bright, Golden， Blue， oxidation etc.
sample:	accepted small order	HS Code:	72230000
Shape:	ribbon, round wire, flat wire, flat strip, rod, bar, pipe, tube,

Material:	TK APM
Resistivity:	1.45
Diameter:	0.05-10.0mm
Surface:	Bright, Golden， Blue， oxidation etc.
sample:	accepted small order
HS Code:	72230000
Shape:	ribbon, round wire, flat wire, flat strip, rod, bar, pipe, tube,

Descrição

FeCrAl Ferro-Chromium-Aluminum D A1 Tk1 Apm High-Temperature Heating Resistance Wire

This product takes refined master alloy as raw material, uses powder metallurgy technology to manufacture alloy ingots, and is manufactured by special cold and hot processing and heat treatment process. The product has the advantages of strong oxidation resistance, good corrosion resistance at high temperature, small creep of electro-thermal components, long service life at high temperature and small change of resistance. It is suitable for high temperature 1420 C, high power density, corrosive atmosphere, carbon atmosphere and other working environments. It can be used in ceramic kilns, high temperature heat treatment furnaces, laboratory furnaces, electronic industrial furnaces and diffusion furnaces.

(Wt%) Main Composition

	C	Si	Mn	Cr	Al	Fe
Min	-	-	-	20	5.5	Bal.
Max	0.04	0.5	0.4	22	6.0	Bal.

Main Mechanical Properties

Tensile Strength at Room Temperature	650-750MPa
Elongation Rate	15-25%
Hardness	HV220-260
Tensile Strength at 1000℃	22-27MPa
High Temperature Durability at 1000℃ and 6MPa	≥100h

Main Physical Properties

Density	7.1g/cm³
Resistivity	1.45×10^-6 Ω.m
Melting Point	1500℃
Maximum Continuous Working Temperature	1400℃
Resistance Temperature Coefficient(Ct)	800℃	1000℃	1400℃
Resistance Temperature Coefficient(Ct)	1.03	1.04	1.05
Average Linear Expansion Coefficient	20-800℃	20-1000℃	20-1400℃
Average Linear Expansion Coefficient	14	15	16

Fast life

1300℃

1350℃

Average Fast Life (Hours)

110

Sagging Rate After Rupture

Testing according to GB/T13300-91 standard method

FeCrAl Ferro-Chromium-Aluminum D A1 Tk1 Apm High-Temperature Heating Resistance Wire 0

Specifications

Wire diameter range φ0.1-10mm
